Quick Start

Below is a quick guide for using EvalScope to conduct model inference performance testing. It supports OpenAI API format model services and various dataset formats, making it convenient for users to perform performance evaluations.

Environment Preparation

EvalScope supports usage in Python environments. Users can install EvalScope via pip or from source. Here are examples of both installation methods:

pip installation

# Install additional dependencies
pip install evalscope[perf] -U

Source installation

git clone https://github.com/modelscope/evalscope.git
cd evalscope
pip install -e '.[perf]'

Basic Usage

You can start the model inference performance testing tool using the following two methods (command line/Python script):

The example below demonstrates performance testing of the Qwen2.5-0.5B-Instruct model using the vLLM framework on an A100, with fixed input of 1024 tokens and output of 1024 tokens. Users can modify parameters according to their needs.

Command line startup

evalscope perf \
  --parallel 1 10 50 100 200 \
  --number 10 20 100 200 400 \
  --model Qwen2.5-0.5B-Instruct \
  --url http://127.0.0.1:8801/v1/chat/completions \
  --api openai \
  --dataset random \
  --max-tokens 1024 \
  --min-tokens 1024 \
  --prefix-length 0 \
  --min-prompt-length 1024 \
  --max-prompt-length 1024 \
  --tokenizer-path Qwen/Qwen2.5-0.5B-Instruct \
  --extra-args '{"ignore_eos": true}'

Python script startup

from evalscope.perf.main import run_perf_benchmark
from evalscope.perf.arguments import Arguments

task_cfg = Arguments(
    parallel=[1, 10, 50, 100, 200],
    number=[10, 20, 100, 200, 400],
    model='Qwen2.5-0.5B-Instruct',
    url='http://127.0.0.1:8801/v1/chat/completions',
    api='openai',
    dataset='random',
    min_tokens=1024,
    max_tokens=1024,
    prefix_length=0,
    min_prompt_length=1024,
    max_prompt_length=1024,
    tokenizer_path='Qwen/Qwen2.5-0.5B-Instruct',
    extra_args={'ignore_eos': True}
)
results = run_perf_benchmark(task_cfg)

Parameter description:

• parallel: Number of concurrent requests, multiple values can be passed, separated by spaces

• number: Number of total requests for each concurrency, multiple values can be passed, separated by spaces (corresponding one-to-one with parallel)

• url: Request URL address

• model: Name of the model used

• api: API service used, default is openai

• dataset: Dataset name, here it’s random, indicating randomly generated dataset, for specific usage instructions refer to; for more available (multimodal) datasets, please refer to Dataset Configuration

• tokenizer-path: Model’s tokenizer path, used to calculate the number of tokens (necessary for random datasets)

• extra-args: Additional parameters in the request, passed as a JSON format string, e.g., {"ignore_eos": true} indicates ignoring the end token

See also

Complete parameter description

Output Results

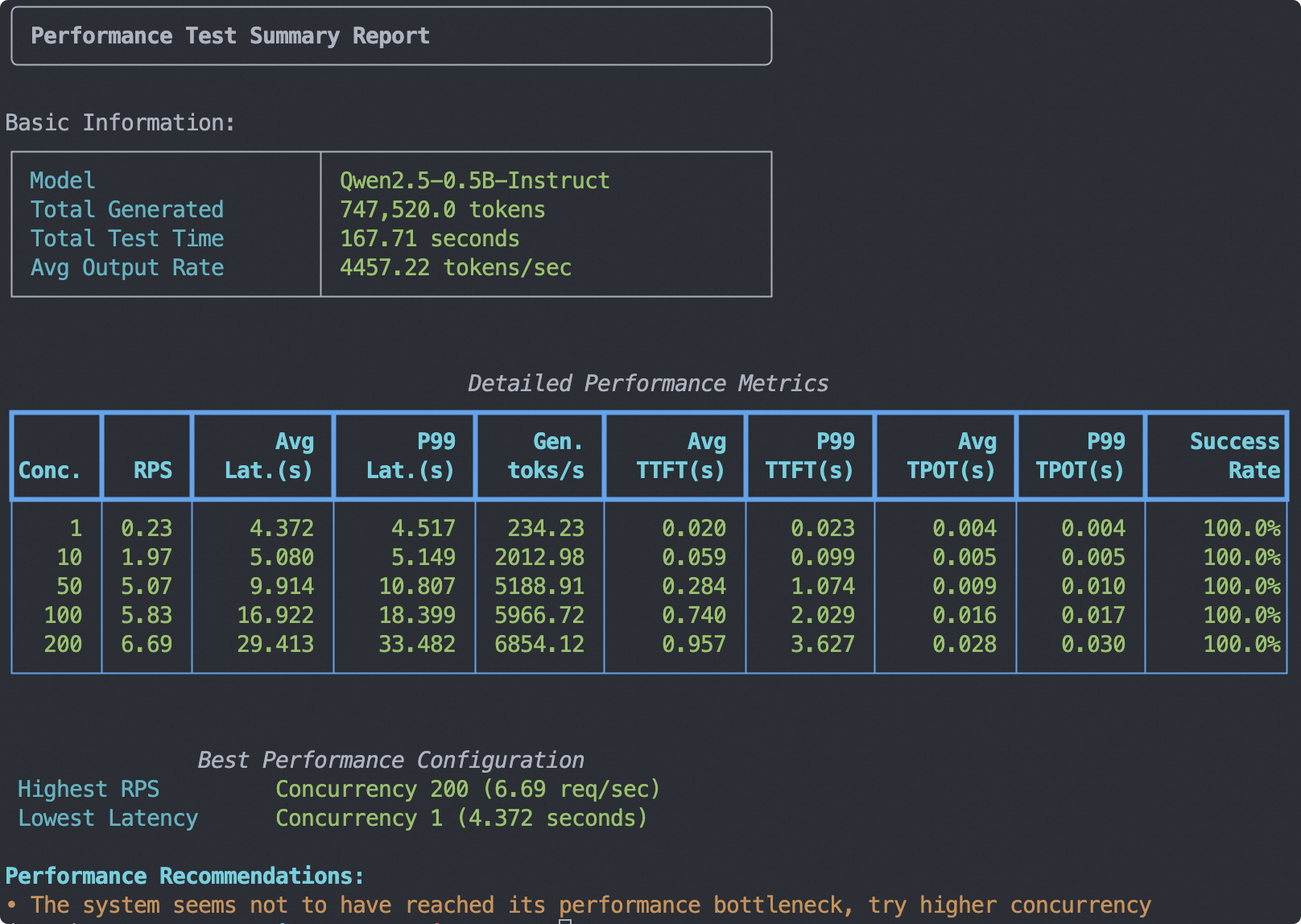

The output test report summary is shown in the image below, including basic information, metrics for each concurrency, and performance test suggestions:

Note

• The stress test report in the diagram is a summary of test results across multiple concurrency levels, allowing users to compare model performance under different concurrency settings. No summary report is generated for a single concurrency level.

• This report will be saved in outputs/<timestamp>/<model>/performance_summary.txt, which users can view as needed.

• For explanations of the metrics in the table below, please refer to the “Metric Descriptions” section that follows. Results will be saved in outputs/<timestamp>/<model>/benchmark.log.

Additionally, the test results for each concurrency level are output separately, including metrics such as the number of requests, successful requests, failed requests, average latency, and average latency per token for each concurrency level.

Benchmarking summary:
┌───────────────────────────┬───────────────┐
│ Metric                    │         Value │
├───────────────────────────┼───────────────┤
│ ── General ──             │               │
│ Test Duration (s)         │         38.31 │
│ Concurrency               │           200 │
│ Request Rate (req/s)      │         -1.00 │
│ Total / Success / Failed  │ 400 / 400 / 0 │
│ Req Throughput (req/s)    │         10.44 │
│ ── Latency ──             │               │
│ Avg Latency (s)           │         18.78 │
│ TTFT (ms)                 │        717.63 │
│ TPOT (ms)                 │         17.66 │
│ ITL (ms)                  │         17.64 │
│ ── Tokens ──              │               │
│ Avg Input Tokens          │       1024.00 │
│ Avg Output Tokens         │       1024.00 │
│ Output Throughput (tok/s) │      10692.45 │
│ Total Throughput (tok/s)  │      21384.91 │
└───────────────────────────┴───────────────┘

Percentile results:
┌────────────────┬─────────┬─────────┬─────────┬─────────┬─────────┬─────────┬─────────┬─────────┬─────────┐
│ Metric         │      1% │      5% │     10% │     25% │     50% │     75% │     90% │     95% │     99% │
├────────────────┼─────────┼─────────┼─────────┼─────────┼─────────┼─────────┼─────────┼─────────┼─────────┤
│ Latency (s)    │   17.25 │   17.46 │   17.74 │   18.14 │   18.71 │   19.23 │   20.28 │   20.62 │   20.84 │
│ TTFT (ms)      │  176.30 │  212.60 │  246.76 │  279.87 │  333.79 │ 1082.24 │ 1812.13 │ 2097.23 │ 2319.52 │
│ ITL (ms)       │    0.00 │    0.01 │    0.01 │   10.62 │   15.67 │   20.37 │   26.97 │   32.50 │   50.11 │
│ TPOT (ms)      │   16.61 │   16.80 │   17.02 │   17.31 │   17.76 │   18.06 │   18.18 │   18.28 │   18.36 │
│ Input tokens   │ 1024.00 │ 1024.00 │ 1024.00 │ 1024.00 │ 1024.00 │ 1024.00 │ 1024.00 │ 1024.00 │ 1024.00 │
│ Output tokens  │ 1024.00 │ 1024.00 │ 1024.00 │ 1024.00 │ 1024.00 │ 1024.00 │ 1024.00 │ 1024.00 │ 1024.00 │
│ Output (tok/s) │   49.15 │   49.75 │   50.55 │   53.33 │   54.79 │   56.48 │   57.73 │   58.73 │   59.45 │
│ Total (tok/s)  │   98.30 │   99.50 │  101.09 │  106.66 │  109.58 │  112.97 │  115.46 │  117.45 │  118.89 │
│ Decode (tok/s) │   54.46 │   54.74 │   55.07 │   55.38 │   56.31 │   57.80 │   58.77 │   59.55 │   60.24 │
└────────────────┴─────────┴─────────┴─────────┴─────────┴─────────┴─────────┴─────────┴─────────┴─────────┘

Metric Descriptions

Metrics

Metric	Explanation	Formula
Test Duration (s)	Total time from the start to the end of the test process	Last request end time - First request start time
Concurrency	Number of clients sending requests simultaneously	Preset value
Request Rate (req/s)	Target request sending rate, -1 means unlimited	Preset value
Total / Success / Failed	Total number of requests sent during the test and their success/failure counts	Successful requests + Failed requests
Req Throughput (req/s)	Average number of successful requests processed per second	Successful requests / Test Duration
Avg Latency (s)	Average time from sending a request to receiving a complete response	Total latency / Successful requests
TTFT (ms)	Average time from sending a request to receiving the first response token	Total first chunk latency / Successful requests
TPOT (ms)	Average time required to generate each output token (excluding first token)	Total time per output token / Successful requests
ITL (ms)	Average time interval between generating each output token	Total inter-token latency / Successful requests
Avg Input Tokens	Average number of input tokens per request	Total input tokens / Successful requests
Avg Output Tokens	Average number of output tokens per request	Total output tokens / Successful requests
Output Throughput (tok/s)	Average number of output tokens processed per second	Total output tokens / Test Duration
Total Throughput (tok/s)	Average number of tokens (input + output) processed per second	(Total input tokens + Total output tokens) / Test Duration
Avg Input Turns	Average number of historical dialogue turns per request in multi-turn conversations (1 for single-turn)	Total input turns / Successful requests
KV Cache Hit Rate (%)	Estimated prefix cache hit rate based on the ratio of cached tokens to input tokens (requires prefix caching enabled on the server and cached_tokens field returned)	Total cached tokens / Total input tokens × 100%
Avg Decoded Tokens/Iter	In speculative decoding, the average number of tokens accepted per model forward pass (iteration), reflecting draft model accuracy	(Total output tokens − 1) / (Total chunks − 1)
Spec Decode Acceptance (%)	Approximate token acceptance rate for speculative decoding, derived from decoded tokens per iter; closer to 1 means a more accurate draft model	1 − 1 / (Avg Decoded Tokens/Iter)

Percentile Metrics

Metric	Explanation
Latency (s)	The time from sending a request to receiving a complete response (in seconds): TTFT + TPOT * Output tokens.
TTFT (ms)	The time from sending a request to generating the first token (in milliseconds), assessing the initial packet delay.
ITL (ms)	The time interval between generating each output token (in milliseconds), assessing the smoothness of output.
TPOT (ms)	The time required to generate each output token (excluding the first token, in milliseconds), assessing decoding speed.
Input tokens	The number of tokens input in the request.
Output tokens	The number of tokens generated in the response.
Output (tok/s)	The number of tokens output per second: Output tokens / Latency.
Total (tok/s)	The number of tokens processed per second: (Input tokens + Output tokens) / Latency.
Decode (tok/s)	The number of decoded output tokens per second.

Visualizing Test Results

Using WandB

First, install wandb and obtain the corresponding API Key:

pip install wandb

To upload the test results to the wandb server and visualize them, add the following parameters when launching the evaluation:

# ...
--visualizer wandb
--name 'name_of_wandb_log'

For example:

Using SwanLab

First, install SwanLab and obtain the corresponding API Key:

pip install swanlab

To upload the test results to the swanlab server and visualize them, add the following parameters when launching the evaluation:

# ...
--visualizer swanlab
--name 'name_of_swanlab_log'

For example:

If you prefer to use SwanLab in local dashboard mode, install swanlab dashboard first:

pip install 'swanlab[dashboard]'

and set the following parameters instead:

--swanlab-api-key local

Then, use swanlab watch <log_path> to launch the local visualization dashboard.

Using ClearML

Please install ClearML using the following command:

pip install clearml

Initialize the ClearML server:

clearml-init

Add the following parameters before starting the test:

# You can use the CLEARML_PROJECT_NAME environment variable to specify the project name
--visualizer clearml
--name 'name_of_clearml_task'
